The smallest and lightest in the industry

Super-compact design achieved by downsizing our existing motors by 25% (in case of 750W motors). Equipped with a 17bit high resolution (130thousand pulse) Absolute /Incremental encoder - High speed setting - Fewer wires - Compliant with IP65 (excluding the connector and the shaft through hole) - Robot cables are employed as standard motor cables

Features
- Super-Compact Size 25% downsizing of 750W motors compared with our conventional motors.
- Comes with 17bit encoder as standard equipment. (17bit ABS, 17bit INC)
*Models with built-in encoder (2000C/T, 2048C/T, 14cores, fewer wires) as an option are also available.
-Satisfies overseas industrial standards.Possible to conform with UL, CE standard

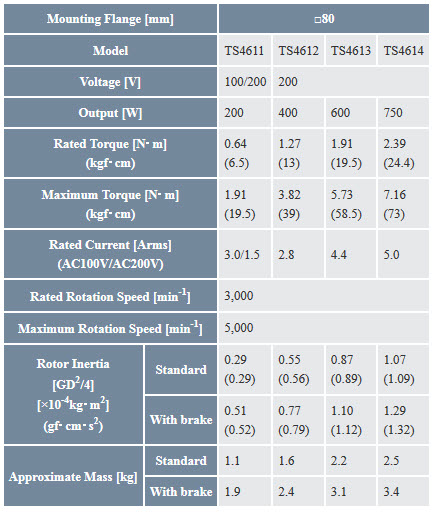

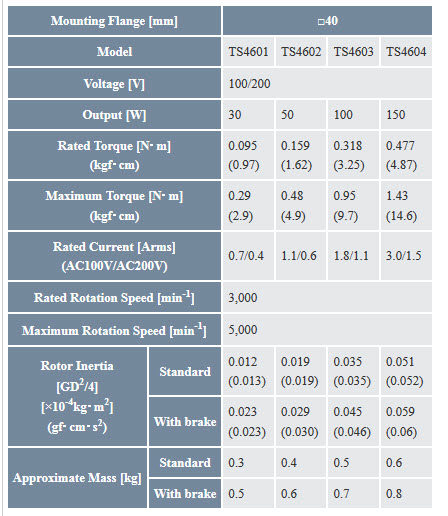

Specifications

\

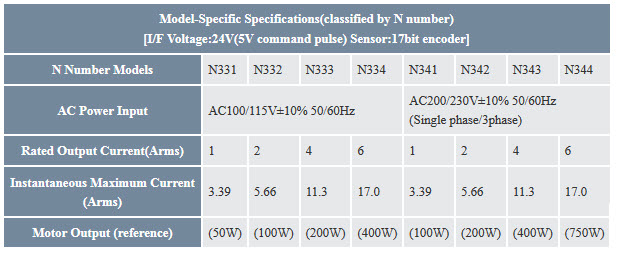

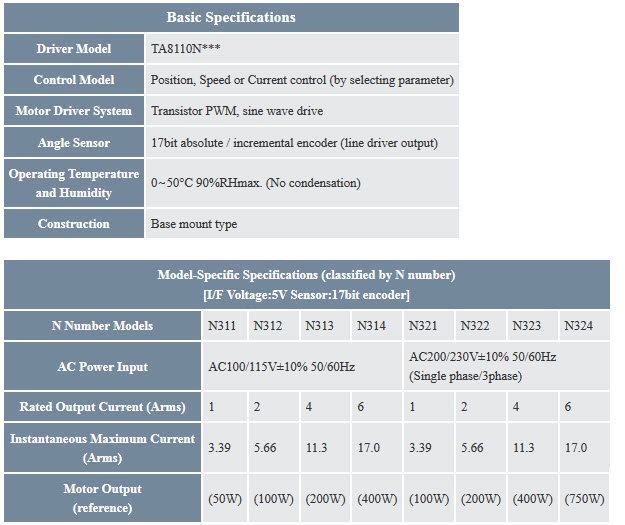

AC Servo Driver TA8110Series

Out of production (Max 750W)
Utilizing high speed DSP and software, this digital control driver can be used in combination with the TBL-iⅡSeries.

Features

• Servo driver utilizing high speed DSP
• A broad line up
  ･A wide variety of motors from 30W to 750W, conforming to 17bit incremental (or absolute) encoder.
• Allows setting of different parameters
  ･Setting made by using push button switches on the panel
• Comes with a restore circuit and a dynamic brake as standard equipment.
• Supports many functions
  ･Low oscillation control is possible even for low rigidity mechanisms by using a control filter function.
  ･A function of easily dividing encoder signals
  ･An electronic gear function
  ･A feed forward function, etc.

• Comes with an external encoder input circuit for position control as standard equipment.
• A 17bit encoder makes this unit well suited for control system requiring high response.

• Conforms with overseas industrial standards.
  ･CE marking.
